GUAGES Powertrain offers four G100 AFR Gauge kits for motorsports applications. All kits come with a black or white backlit gauge, a wide-range AFR sensor to be mounted in the exhaust of the engine, control electronics, a mounting boss and plug, and all required cables. Recording with playback and/or a linearized analog output is available with certain kits. Note that all kits use a true-wide range AFR sensor (not a production stoichiometric sensor) and can be field calibrated using ambient air.

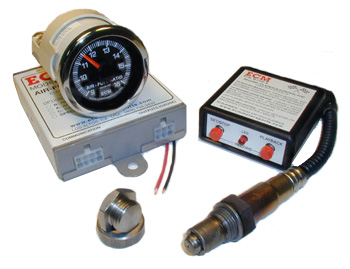

The G100-RAC combines four important features into a single system: a wide-range AFR sensor, an easy-to-read gauge, data recording with playback, and a linear 0 to 5 volt analog output. The 270-degree sweep gauge has a black or white backlit face, an illuminated pointer, and is highly visible in both daylight and night conditions. The analog output is suitable for input into a data acquisition system or engine controller. Data recording can be triggered either manually using the buttons on the Record/Playback Control Pod, or automatically by the release of a wheel or transmission brake using a 12 volt signal. Recordings of up to one minute can be made and the data is retained even if the vehicle's battery is disconnected. Holding down the Playback button plays back the AFR data on the gauge and the analog output.
The G100-AC combines three important features into a single system: a wide-range AFR sensor, an easy-to-read gauge, and a linear 0 to 5 volt analog output. The 270-degree sweep gauge has a black or white backlit face, an illuminated pointer, and is highly visible in both daylight and night conditions. The analog output is suitable for input into a data acquisition system or engine controller.
The G100-RC combines three important features into a single system: a wide-range AFR sensor, an easy-to-read gauge, and data recording with playback. The 270-degree sweep gauge has a black or white backlit face, an illuminated pointer, and is highly visible in both daylight and night conditions. Data recording can be triggered either manually using the buttons on the Record/Playback Control Pod, or automatically by the release of a wheel or transmission brake using a 12 volt signal. Recordings of up to one minute can be made and the data is retained even if the vehicle’s battery is disconnected. Holding down the Playback button plays back the AFR data on the gauge.
The G100-C is perfect for applications where a true wide-range AFR sensor-based gauge is required. The 270-degree sweep gauge has a black or white backlit face, an illuminated pointer, and is highly visible in both daylight and night conditions.
|
G100-RAC (Air-Fuel Ratio Gauge with Recording/ Playback and Analog Output)
G100-AC (Air-Fuel Ratio Gauge with Analog Output
G100-RC (Air-Fuel Ratio Gauge with Recording/ Playback)
G100-C (Air-Fuel Ratio Gauge)
